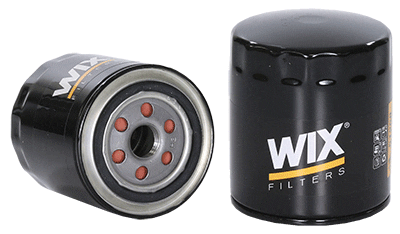

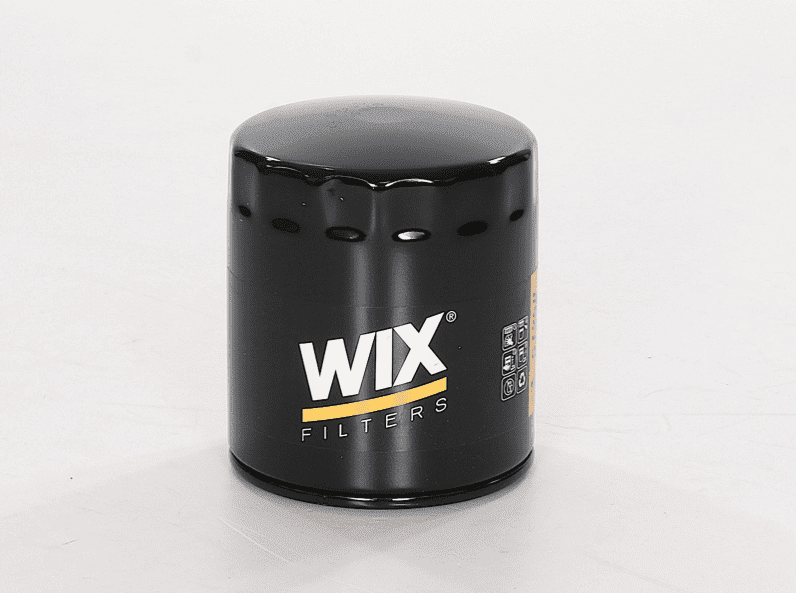

WIX 51258 Oil Filter

WIX 51258

WIX Filters - 51258 Spin-On Lube Filter, Pack of 1

WIX 51258 Oil Filter

WIX Filters - 51258 Spin-On Lube Filter, Pack of 1

WIX Filters Spin-On Lube Filter (#51258)

$7.10

Wix Spin-On Lube Filters protect the engine from premature wear by removing the abrasive contaminants in the engine lubricating system.

Suitable for fitting on a GMC Motorhome with Olds 455 engine.

Description

WIX Filters Spin-On Lube Filter are made of pleated paper which arrests various types of suspended materials.

Product Specifications

Part Number:	51258
UPC Number:	765809512580
Style:	Spin-On Lube Filter
Service:	Lube
Type:	Full Flow
Media:	Enhanced Cellulose
Height:	4.338 (110)*
Outer Diameter Top:	3.66 (93)*
Outer Diameter Bottom:	Closed:
Thread Size:	13/16-16
By-Pass Valve Setting-PSI:	None
Anti-Drain Back Valve:	Yes
Beta Ratio:	2/20=6/20
Burst Pressure-PSI:	345
Max Flow Rate:	9-11 GPM
Nominal Micron Rating:	21

( )* denotes metric

Gasket Diameters

Number	O.D.	I.D.	Thk.
Attached	2.834 (72)*	2.462 (63)*	0.2 (5)*

Principle Application:

Principle Application:

AMC (60-81), GM (67-80)

When to Change Your Oil and Filter

How to Change a WIX Oil Filter

Download the WIX 2021 Light Duty catalog here.

Download the WIX 2018 Medium and Heavy Duty Truck and Buses catalog here.

Additional information

Number of Units	One
